Process Analyzer » เครื่องตรวจวัดก๊าซออกซิเจนในกระบวนการผลิต รุ่น OXITEC 5000

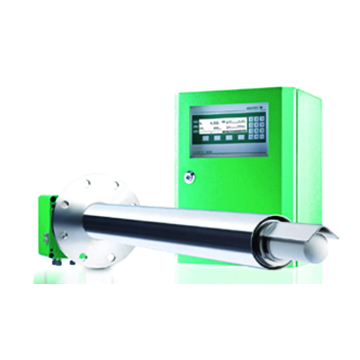

Model OXITEC® 5000 InSitu O2 analyzer Brand Enotec Product of Germany
×
Detail
ENOTEC produces oxygen analyzers for fast and precise combustion control. The OXITEC® analyzers are developed and manufactured in-house in Germany according to ISO 9001.
Under the name OXITEC 5000+, our proven O2 analyzer is certified for QAL1 and MCERTS applications.
We create superior sensors which excel in harsh process conditions, also with aggressive or corrosive flue gas compositions. An additional strength of ENOTEC's O2 sensor is its resilience against process-induced vibrations, making it highly durable and giving it an average life span of 7 to 8 years, depending on the application.
OXITEC® analyzers are highly versatile and can be configured exactly to the process; probe length, filter type, interface and even probe material can be individually configured.
Also available as a 19" rack analyzer (4 HE) is the SME-54 electronic unit, for use in cabinets, in conjunction with an ENOTEC InSitu probe.
×
Technical Data
Insertion depth of probe up to 3689 mm O2 ranges 2x 0 - 25 % O2 (others on request) Measurement accuracy < 0.5 % of measured value or 0.02 Vol % O2 (higher value valid) Reaction time < 1 sec. (on test gas) Process gas temperature max. 800 °C max. 1400 °C (with cooling protection tube) Ambient temperature -40 °C to 80 °C (probe) -20 °C to 55 °C (electronic unit) Interface MODBUS RTU via RS232/RS485, HART, FIELDBUS, ENOTEC REMOTE IP code IP65 (probe) IP66 (electronic unit) IP20 (electronics, 19 "rack)
Applications Fuel efficiency optimisation Measurement of emissions Power generation Waste incineration Combustion control
Features High accuracy Overview of calibration history Sensor life expectancy Gas tight sensor construction Self-monitoring Fast InSitu measurement Unrivaled long service life
