» ระบบตรวจวัดก๊าซออกซิเจนในกระบวนการผลิต รุ่น OXITEC GasEx

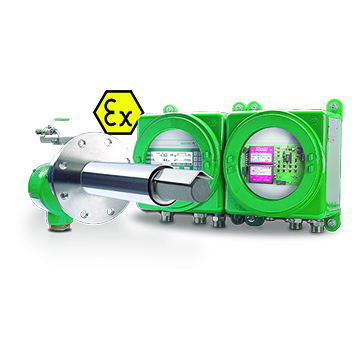

  OXITEC® 5000 GasEx O2 Analyzer InSitu in gas explosion zones
Enotec of Germany
×

Detail

The OXITEC® 5000 GasEx is a robust oxygen analyzer which combines the reliability and quality of OXITEC® analyzers with the stringent standards necessary for EX protection for maximum plant safety.
ENOTEC certifies its analyzers under process-similar conditions to ensure reliable and safe process control in gas hazardous zones 1/2.

The ATEX certifications for ENOTEC products is valid for systems with process temperatures of up to 1400 °C.

Probe: ll 2G Ex d IIC T3 Gb
Electronic unit: II 2G Ex d IIC T6 Gb

For ATEX certified systems for measurement in dust Ex environments, we recommend COMTEC® 6000 DustEx (O2 measurement only or O2/COe measurement)
×

Technical Data

Insertion depth of probe 464 mm 924 mm
O2 ranges 2x 0 - 25 % O2 (others on request)
Measurement accuracy < 0.5 % of measured value or 0.02 Vol % O2 (higher value valid)
Reaction time < 1 sec. (on test gas)
Process gas temperature max. 500 °C max. 1400 °C (with cooling protection tube)
Ambient temperature -20 °C to 70 °C (probe) -20 °C to 55 °C (electronic unit)
Interface MODBUS RTU via RS232/RS485, HART, FIELDBUS, ENOTEC REMOTE
IP code IP65 (probe) IP66 (electronic unit)

Applications
Refineries
Gas production plants
Petrochemical plants
Gas by-product/Mixed gas furnaces
EX hazardous areas 1/2

Features
High accuracy
Overview of calibration history
Sensor life expectancy on display
Gas tight sensor construction
Self-monitoring
Unrivaled long service life
×

VDO

×

Downloads

-
