Process Analyzer » ระบบตรวจวัดก๊าซออกซิเจนในกระบวนการผลิต รุ่น ENSITU 7000

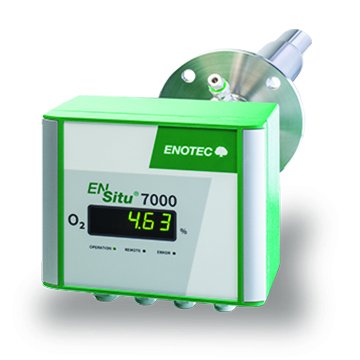

ENSITU® 7000 Oxygen transmitter probe Enotec of Germany
×
Detail
Decades of experience in design and construction of highest quality analyzers have resulted in the ENSITU® 7000, a budget friendly O2 transmitter probe, made by ENOTEC.
Being able to withstand high flue gas temperatures up to 600°C and high dust loads, the ENSITU® 7000 allows a fast and continuous measurement.
Highly versatile and robust, the new ENOTEC analyzer is the ideal solution for process control in small to medium sized boilers, using all applicable fuels such as gas, oil and coal.
The ENSITU® 7000 works out of the box, needing no calibration or instrument air supply. ENSITU® 7000 measures InSitu: diffusion takes place through the large filter with v-shield. Flue gas extraction and conditioning is not necessary.
Installation takes a matter of minutes: Install using an industry standard flange, power up and measure. Available in 3 lengths, the ENSITU® 7000 is designed for easy integration in existing boiler concepts.
×
Technical Data
Measuring principle Zirconium dioxide, InSitu Insertion depth of probe 313 mm. 536 mm. 993 mm. Reaction time < 1 sec. (on test gas) Probe material 1.4571 (316 Ti) Measurement accuracy < 0.5 % of measured value or 0.02 Vol % O2 (higher value valid) Process gas pressure 950 1.050 mbar Process gas temperature max. 600 °C Flange connection corresponds to DN65 PN6 Power supply voltage 48 VDC, 5A max. Ambient temperature -40 °C to 70 °C Interface 4 - 20 mA, ENOTEC REMOTE IP code IP 66 / NEMA 4X
Applications Boilers using any fuel Biomass plants Furnaces High dust loads
Features Plug & Play operation Innovative operating concept Ready for immediate use Easy integration into existing boiler concepts Electronics can be separated from the probe by a robust industrial connector
