Detail

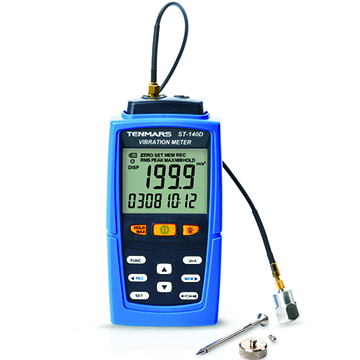

This meter measures the vibrations of the rotating and reciprocating machines, as well as bearing damage, measurement items are acceleration, speed, displacement, which can check if the machine is to be repaired or upgrade.

Technical Data

The maximum display of the LCD is 1999.
Measurement item: VEL (velocity) / ACC (acceleration) / DISP (displacement).
Function: Acceleration (RMS, PEAK, MAX HOLD, HOLD).
Velocity (RMS, PEAK, MAX HOLD, HOLD).
Displacement (P-P, MAX HOLD P-P, HOLD).
Unit: Acceleration: m/s², g, ft/s². Velocity: mm/s, cm/s, inch/s. Displacement: mm, inch.
Vibration sensor with magnetic adapter on1.2M (47.2) cable
Frequency Lo range :10Hz~1KHz meets ISO 2954 measurement
Hi range : 10Hz~5KHz
Overload display: “OL”.
Offset adjustment used for zero function
Auto power (15 minutes) and disable auto power off.
Resolution:0.1m/s²,0.01g,1ft/s²,0.1mm/s,0.01cm/s,0.01inch/s,0.001mm,0.001inch
High sensitivity probe head for accurate measurement.
Provides long and short probe head.
Frequency LO range: 10Hz-1KHz
Stores 99records manually.(ST-140)
Data logger with 9999 records capacity.(ST-140D)
USB interface.(ST-140D)
